Drawing things

The Canvas class provides a number of methods for drawing things on the canvas. These methods are used to draw pixels, lines, rectangles, circles, ellipses, arcs, Bézier curves, triangles, and text.

Drawing and reading pixels

The set_pixel method sets the color of a single pixel on the canvas.

canvas.set_pixel(160, 90, 10) # in palette mode
canvas.set_pixel(160, 90, 0, 255, 0) # in RGB mode

To read the color of a pixel, use the get_pixel method.

color = canvas.get_pixel(160, 90)

Depending on the color mode, the get_pixel method returns either a palette index or an array of RGB values.

Setting the current color

The set_color method sets the color that will be used by all subsequent drawing operations.

canvas.set_color(10)

You can omit the color argument in the set_pixel method if you have previously set the color using the set_color method.

canvas.set_color(10)
canvas.set_pixel(160, 90)

Drawing lines

Use the draw_line method to draw a line between two points.

canvas.set_color(10)
canvas.draw_line(10, 10, 100, 50)

Drawing rectangles

Use the draw_rect and fill_rect methods to draw rectangles. Specify the coordinates of the upper-left corner and the lower-right corner of the rectangle.

canvas.set_color(3)
canvas.fill_rect(10, 10, 100, 50)
canvas.set_color(10)
canvas.draw_rect(10, 10, 100, 50)

Drawing circles

Use the draw_circle and fill_circle methods to draw circles. Specify the center and the radius of the circle.

canvas.set_color(3)
canvas.fill_circle(160, 90, 50)
canvas.set_color(10)
canvas.draw_circle(160, 90, 50)

Drawing ellipses

Use the draw_ellipse and fill_ellipse methods to draw ellipses. Specify the center, the horizontal radius, and the vertical radius of the ellipse.

canvas.set_color(3)
canvas.fill_ellipse(160, 90, 50, 30)
canvas.set_color(10)
canvas.draw_ellipse(160, 90, 50, 30)

Drawing circular arcs

Use the draw_arc and fill_arc methods to draw arcs. Specify the center, the radius, the start angle, and the end angle of the arc.

canvas.set_color(3)
canvas.fill_arc(160, 90, 50, 0, 180)
canvas.set_color(10)
canvas.draw_arc(160, 90, 50, 0, 180)

Drawing Bézier curves

Use the draw_quadratic_bezier and draw_cubic_bezier methods to draw quadratic and cubic Bézier curves, respectively.

canvas.set_color(10)
canvas.draw_quadratic_bezier(10, 10, 50, 50, 100, 10)
canvas.draw_cubic_bezier(10, 10, 50, 50, 100, 50, 150, 10)

Drawing triangles

Use the draw_triangle and fill_triangle methods to draw triangles. Specify the coordinates of the three vertices of the triangle.

canvas.set_color(3)
canvas.fill_triangle(10, 10, 100, 50, 50, 100)
canvas.set_color(10)
canvas.draw_triangle(10, 10, 100, 50, 50, 100)

Flood filling

The flood_fill method fills an area of the canvas with the current color. Specify the starting point of the fill operation.

canvas.set_color(10)
canvas.draw_circle(110, 90, 50)
canvas.draw_circle(210, 90, 40)
canvas.flood_fill(160, 90)

Drawing text

Use the draw_text method to draw text on the canvas. Specify the position, the text to draw, the font name, and the scale factor.

canvas.set_color(10)
canvas.draw_text(10, 10, "Hello, world!", "4x6", 2)

Use text_width to get the width and height of a given text string in pixels.

width = canvas.text_width("Hello, world!", "4x6", 2)

There are several built-in fonts available:

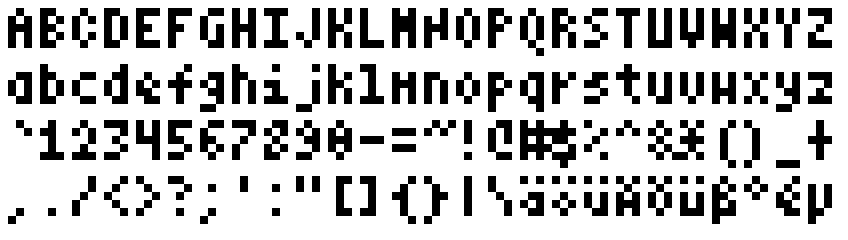

4x6

4x6

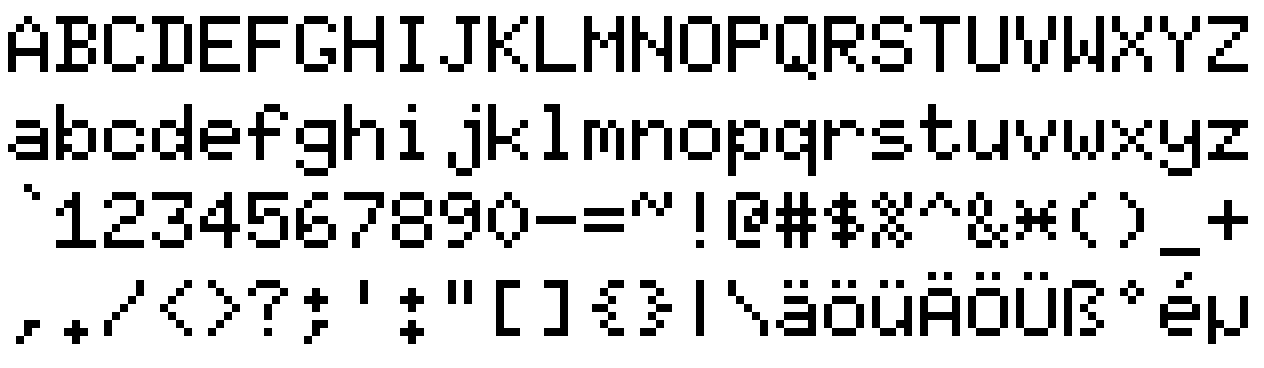

6x10

6x10

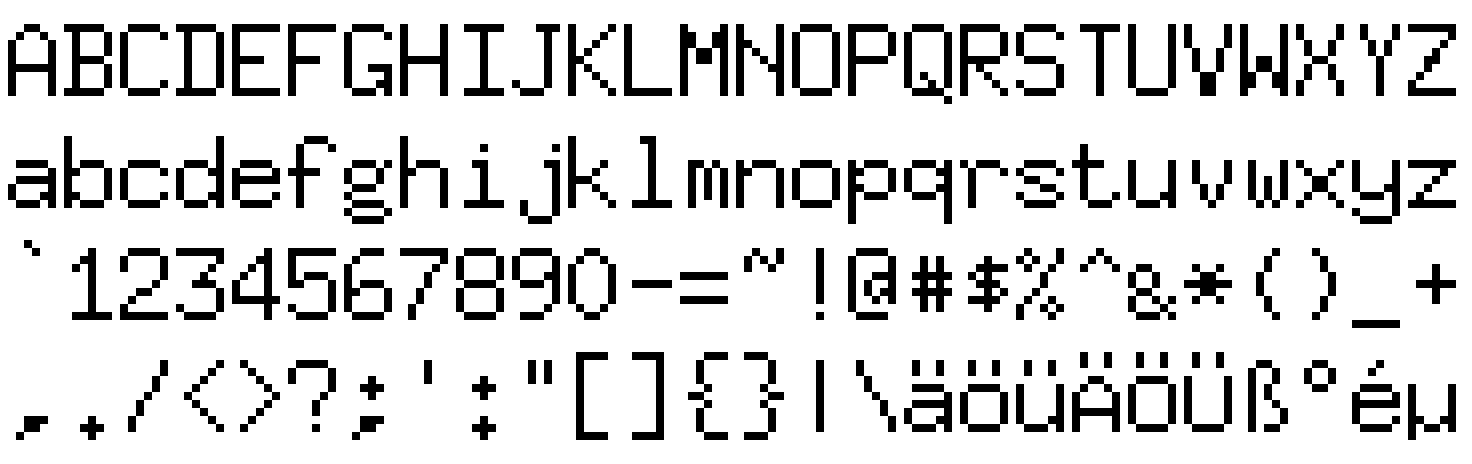

7x13

7x13

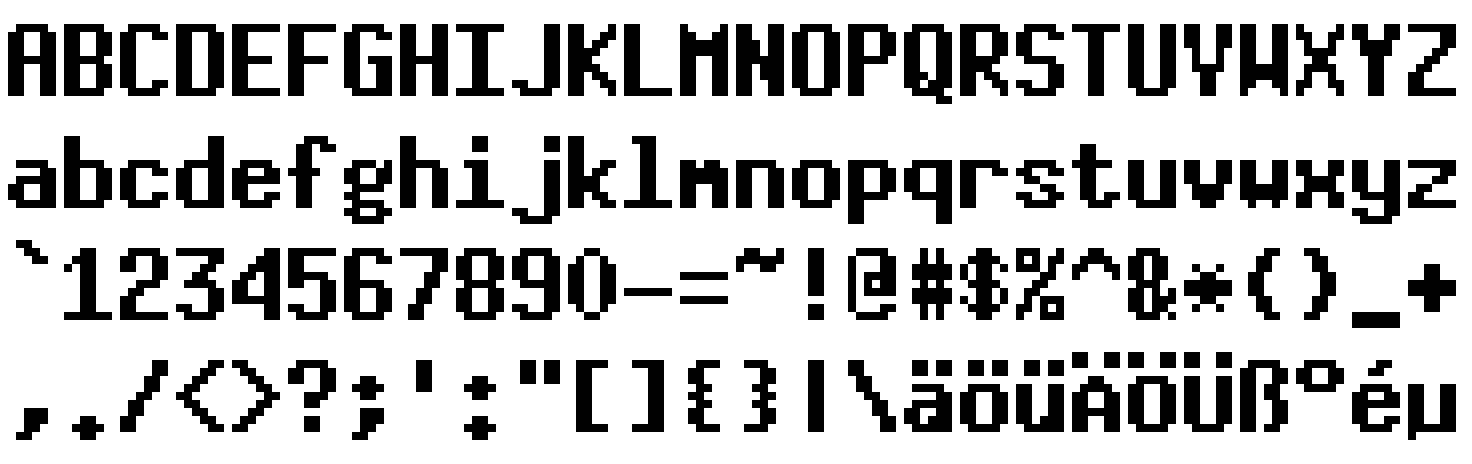

7x13B

7x13B

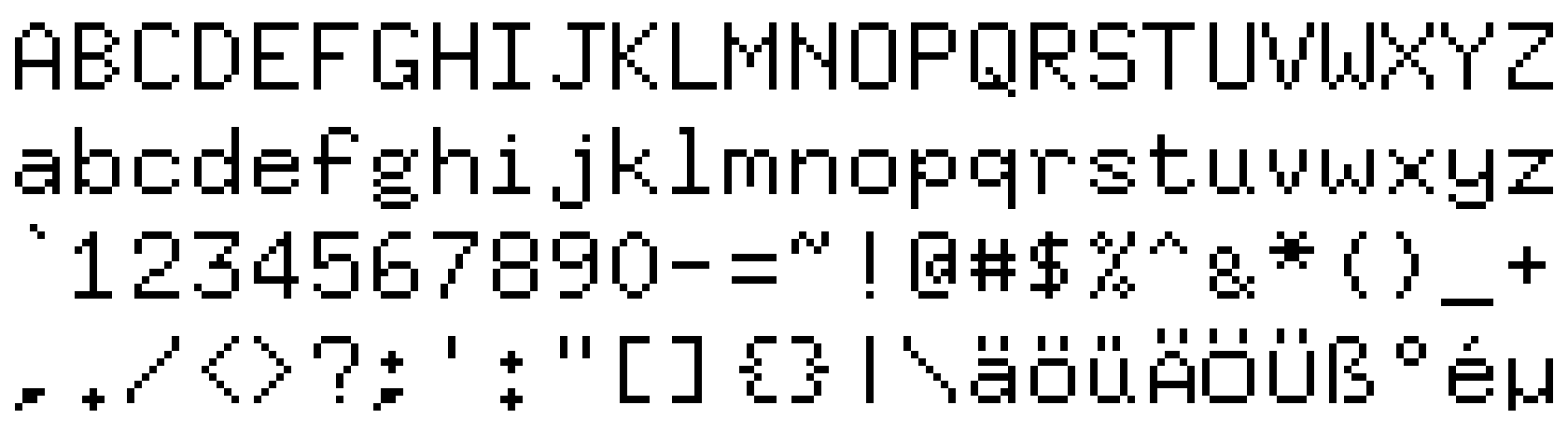

8x13

8x13

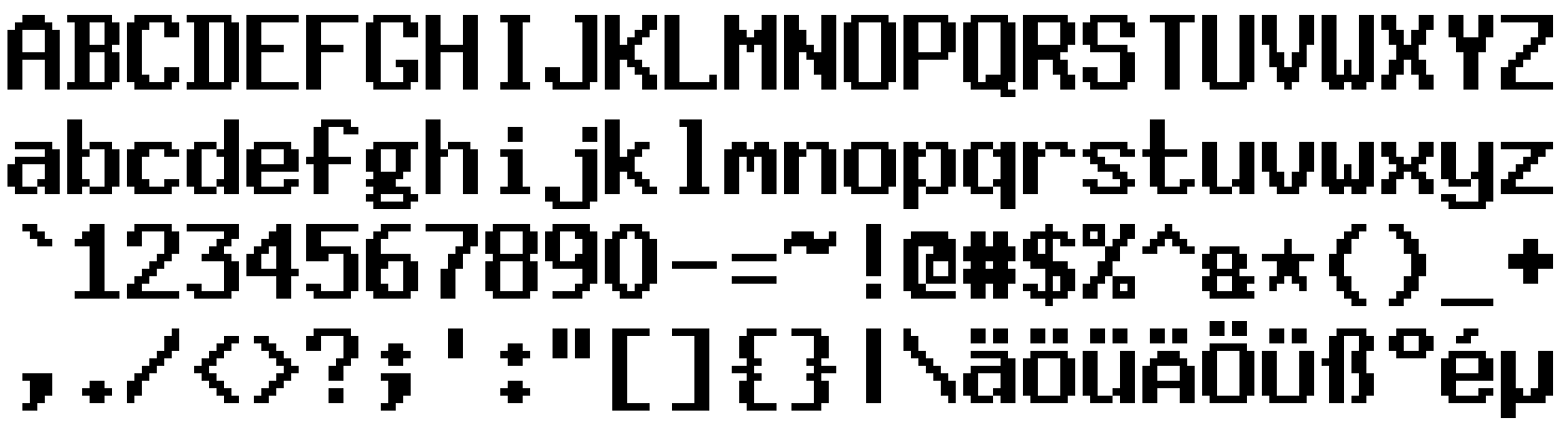

8x13B

8x13B

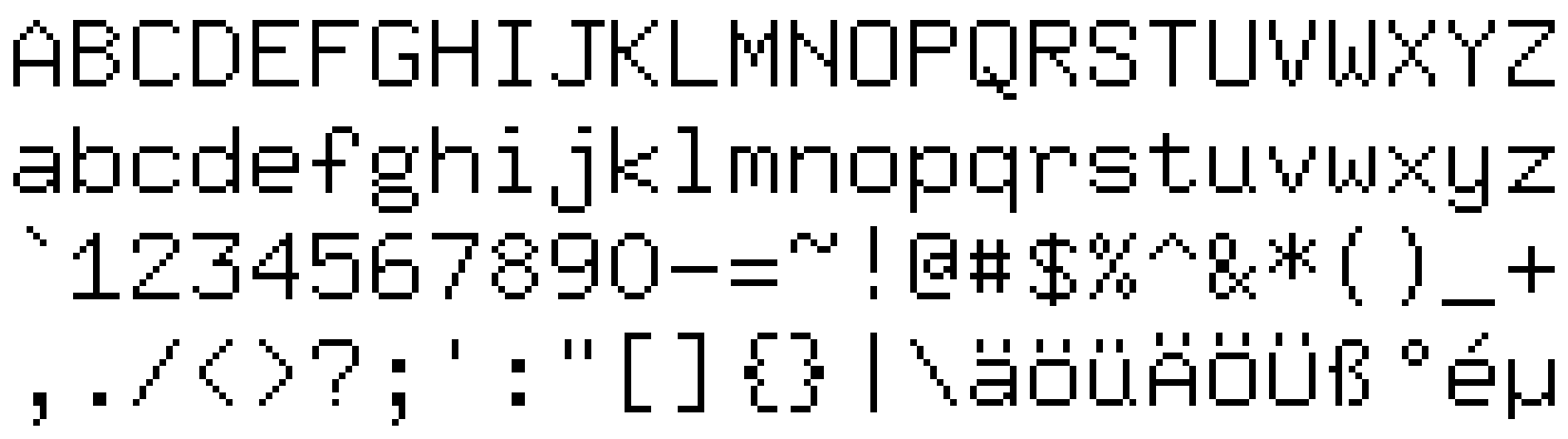

9x15

9x15

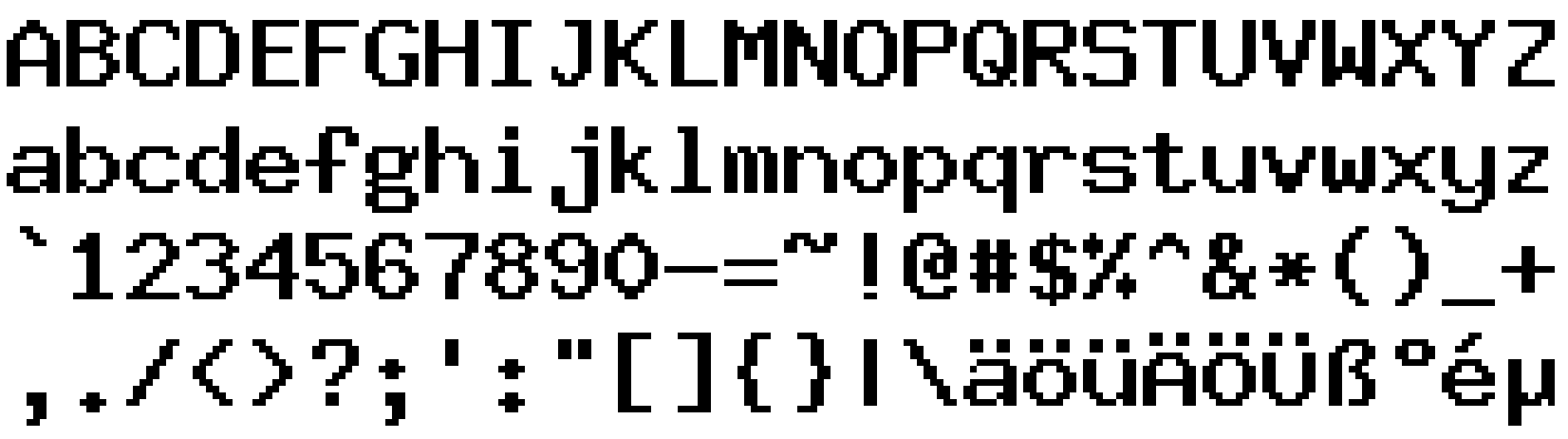

9x15B

9x15B
